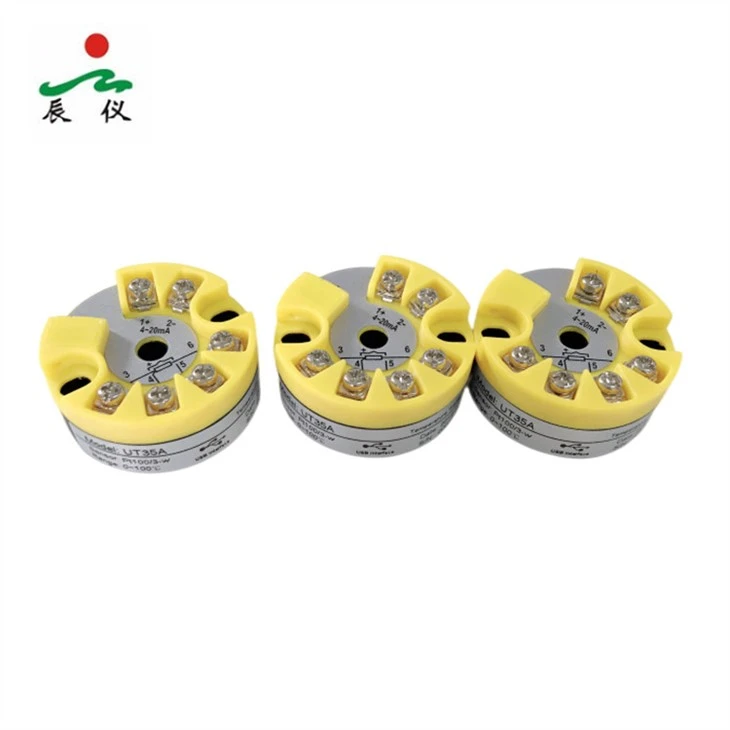

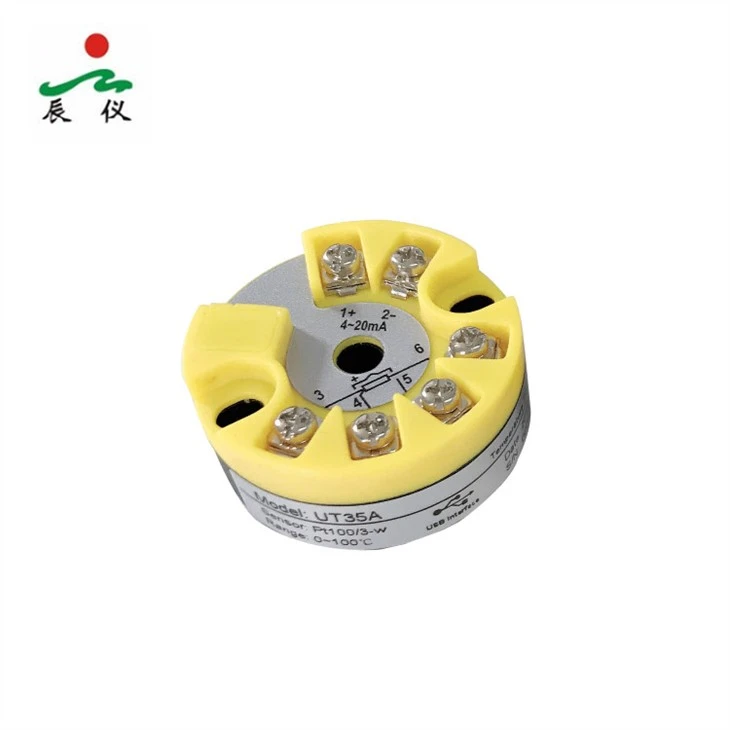

Integrated Transmitter
Nws yog dav siv nyob rau hauv roj av, tshuaj, metallurgy, hluav taws xob fais fab, mechanical thiab hluav taws xob, textile, zaub mov thiab tshuaj thiab lwm yam kev lag luam thiab kev tshawb fawb teb, yog ib hom tshiab ntawm txhua yam thiab hluav taws xob - ntim ntsuas kub.
Specification
Qauv | Tswv yim | Zaub | Muab cais nyob ib leeg |
UAS 35A | RTD / Thermocouple | tsis muaj | tsis muaj |
UAS 35B | RTD / Thermocouple | tsis muaj | yog |
Fetures
◇ 2 xov hlau kub transmitter, 4 ~ 20mA Circuit Court fais fab mov
◇ RTD lead hlau them nyiaj, thermocouple txias taw tes them nyiaj
◇ Hom ntse, nws tuaj yeem teeb tsa lub cim thiab qhov kub thiab txias los ntawm software
Cov ntaub ntawv technical
◇ Fais fab mov: 7.5 ~ 35VDC
◇ Input cim ntawm RTD: Pt100, Cu50
◇ Cov ntsiab lus txias: ± 1 degree
◇ Input cim ntawm thermocouple: K / N / J / E / T / R / S / B / Peb
◇ Cov zis load: Tsawg dua lossis sib npaug rau [(Ui{{0}}.5)/0.02]Ω, Ui txhais tau hais tias qhov hluav taws xob input voltage
◇ Electromagnetic compatibility: raws li GB/T 18268-2000
◇ Ua haujlwm ib puag ncig: kub -40 ~ 80 degree, av noo 10 feem pua ~ 90 feem pua RH
◇ Lead hlau them nyiaj ntau: 0 ~ 5Ω (sib npaug rau 3 xaim)
◇ Cov chav kawm tiv thaiv: IP20 ntsia rau hauv lub thawv sib txuas ntawm lub sensor

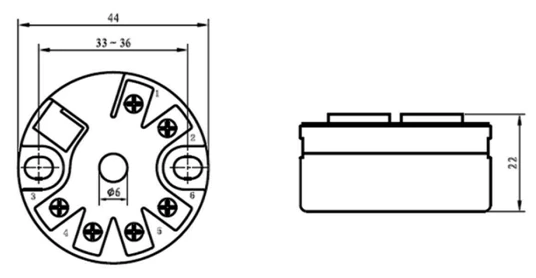

Daim ntawv dimension

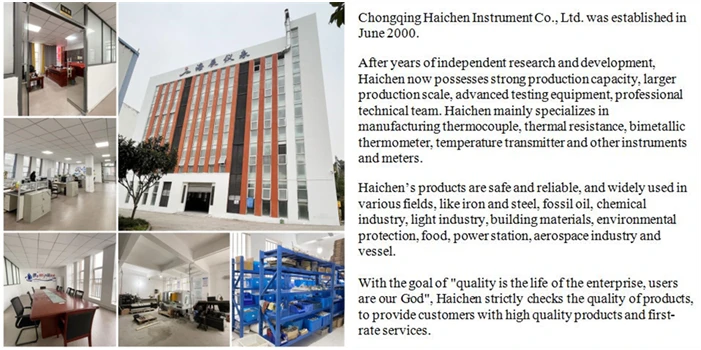

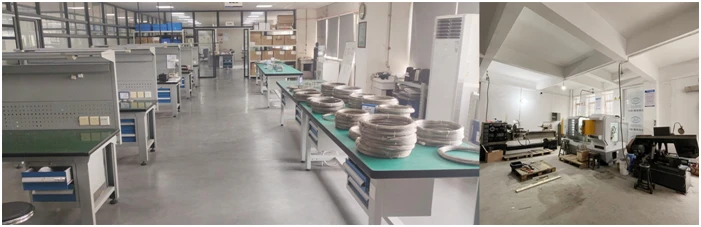

Lub Hoobkas qhia
Rhiav:

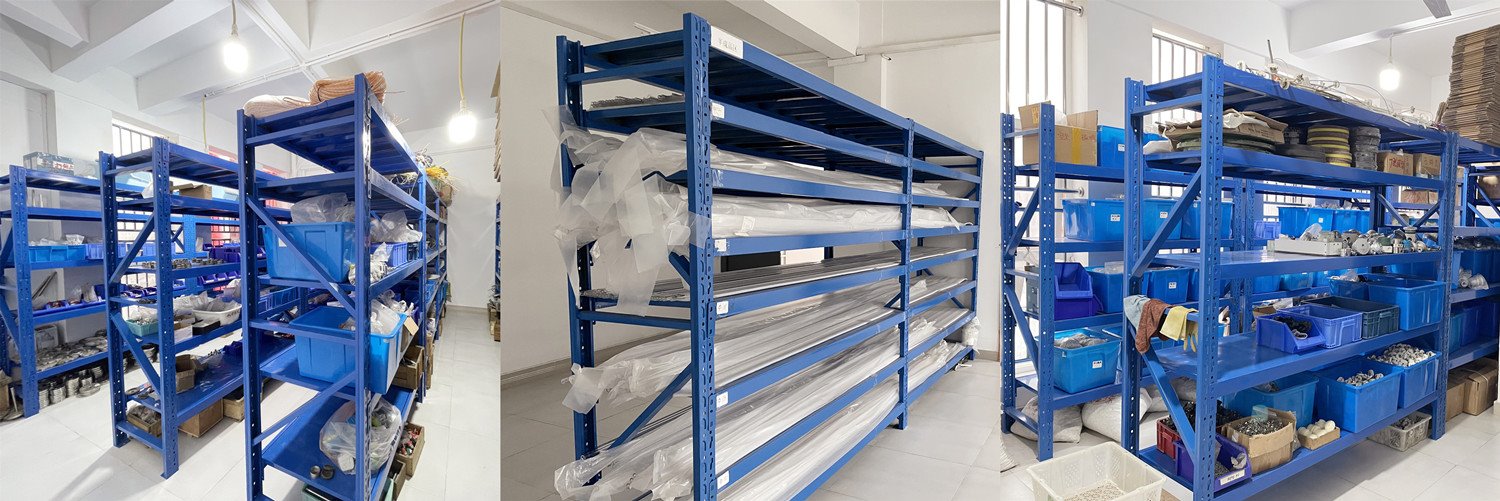

Warehouse:
Daim ntawv pov thawj zoo
SIL Functional Safety Certificate ISO9001: 2015 Daim ntawv pov thawj tawg pov thawj

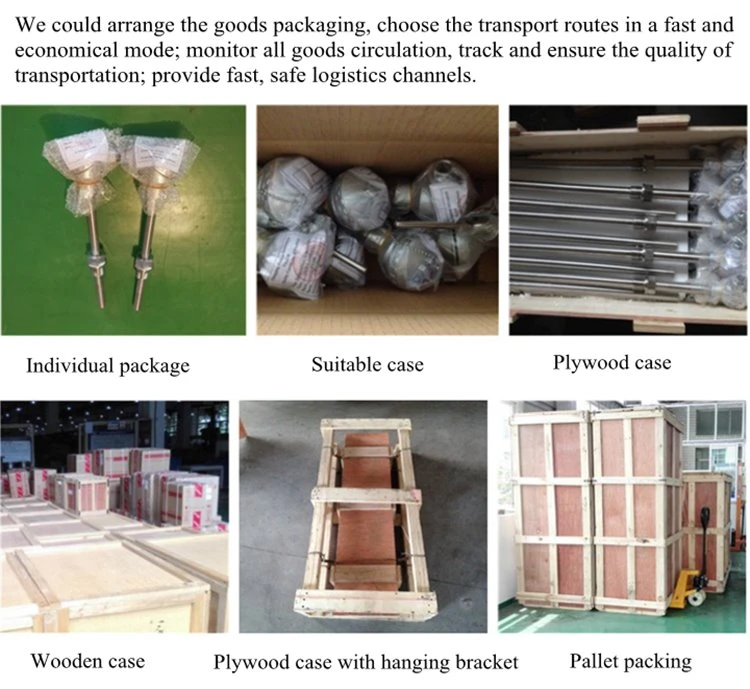

Packing thiab shipping
Delivery details:
FAQ
1. Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv thermocouple thiab thermal kuj thiab thiab peb pauv peb cov khoom nrog peb cov neeg siv khoom ncaj qha.
2. Q:Koj puas tuaj yeem ua OEM thiab ODM?
A: Yog, OEM thiab ODM yog ob qho tib si txais. Cov khoom siv, ntxig qhov loj me, lub davhlau ya nyob twg tuaj yeem hloov kho, qhov yooj yim kom muaj nuj nqis peb yuav qhia tom qab peb sib tham.
3. Q: Peb puas tuaj yeem siv peb lub logo?
A: Yog lawm, peb tuaj yeem luam koj lub logo raws li koj qhov kev thov los ntawm laser inscription.
4. Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Lub sijhawm xa khoom dav dav yog 30-45 hnub tom qab tau txais koj daim ntawv lees paub qhov kev txiav txim. Anther, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv sijhawm 1-2 hnub.
5. Q: Peb tuaj yeem tau txais nqe lus li cas?
A: Tiv tauj peb nrog specification: xws li cov khoom, tsim, loj, zoo, xim, kom muaj nuj nqis, nto finishing, thiab lwm yam.
Cim npe nrov: integrated transmitter, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, nqe, kev muag khoom
