Duplex Thermocouple Hom K
Duplex Thermocouple Type K yog siv rau hauv kev lag luam los ntsuas qhov kub ntawm cov pa roj, cov kua dej los yog cov khoom siv thiab lwm yam., Nws feem ntau yog sib sau ua ke nrog cov ntsuas, recorders lossis computers.
Khoom Taw Qhia
Thermocouples yog tsim nyob rau hauv ntau qhov sib txawv configurations rau ntau yam kev siv. Txoj kab uas hla, qhov ntev, cov khoom siv sheath, cov hlau lead ntev thiab cov khoom siv sensor tsuas yog ob peb qhov sib txawv uas mus rau hauv kev txiav txim siab cov qauv ntawm thermocouple thaum tsim khoom. Lub ntsiab kev txiav txim siab ntawm hom thermocouple yuav tsum tau siv nyob rau hauv ib daim ntawv thov yog kub, ib puag ncig, teb lub sij hawm thiab raug. Qhov sib txuas ntawm cov thermocouple tuaj yeem ua rau hauv av, tsis muaj av lossis nthuav tawm.
Khoom Parameter
Mark: NCO
Hom: duplex
Qhov kub thiab txias: 0 ~ 1000 ℃
Txoj kab uas hla: 1mm ~ 10mm (kev sojntsuam tuaj yeem tsim los ua chips, blocks, duav, ntsia hlau, nplhaib)
Kev sojntsuam ntev: customized
Cov khoom siv sojntsuam: stainless hlau 321/310/304/316 lossis kub kub alloy Inconel600, GH3030
Txheej txheem kev twb kev txuas: tsis muaj los yog tsau xov
Lead hlau: customized ntev (PTFE / PVC / Fiberglass sheath)
Terminal: jacks lossis connectors
Cov khoom siv conductor | Mark | Qhov tseeb | |||
Chav I | Chav II | ||||
Qhov tseeb | Qhov kub thiab txias (°C) | Qhov tseeb | Qhov kub thiab txias (°C) | ||
NiCr-NiSi | K | ± 1.5°C lossis ± 0.4% |t| | -40~1000 | ± 2.5°C lossis ± 0.75% |t| | -40~1000 |
NiCr Si-NiSi | N | -40~1100 | -40~1100 | ||
NiCr-Konstantan | E | -40~800 | -40~700 | ||
Fe-Konstantan: koj puas xav tau ntau tus thwjtim? | J | -40~750 | -40~500 | ||
Cu-Konstantan | T | ± 0.5 ° C lossis ± 0.4%|t | | -40~350 | ± 1 ° C lossis ± 0.75%|t| | -40~300 |
PtRh10-Pt | S | ± 1 ° C lossis ± [1+ (t-1100) × 0.003] | 0~1600 | ± 1.5°C lossis ± 0.25% |t| | 0~1400 |
PtRh13-Pt | R | 0~1600 | |||
PtRh30-PtRh6 | B | —— | —— | 600~1700 | |

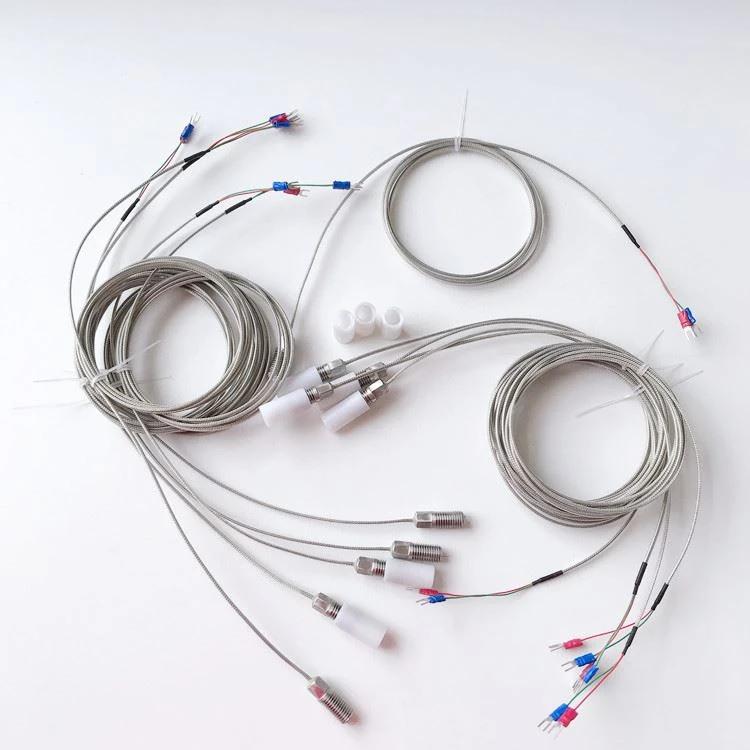

Cov duab khoom

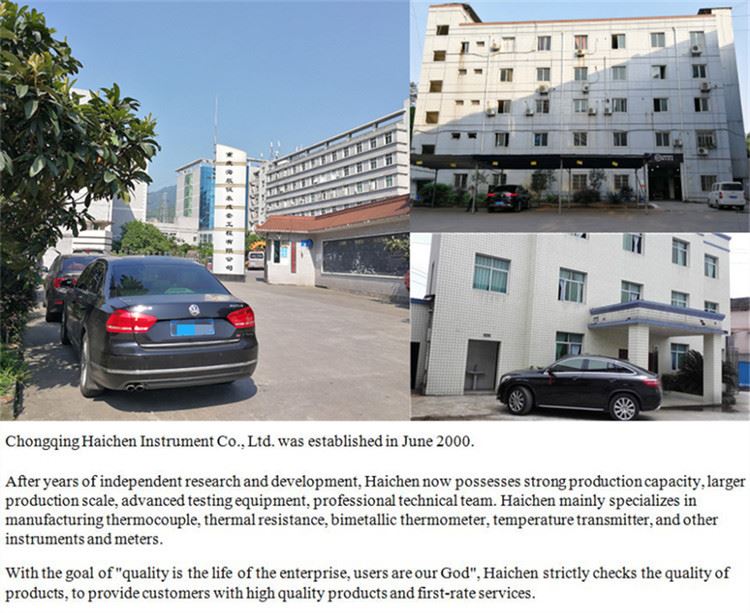

Lub Hoobkas Taw Qhia

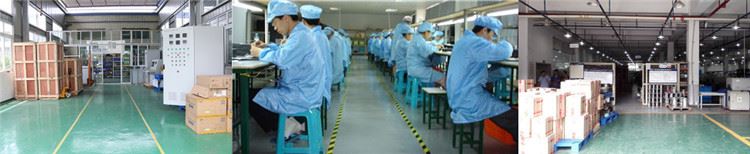

Rhiav:
Warehouse:
Daim ntawv pov thawj zoo
Packing thiab Shipping
Tus me nyuam Paub meej
FAQ
Q: Cov khoom lag luam ntawm koj lub Hoobkas yog dab tsi?
A: Kub sensors xws li thermocouple, thermal kuj, bimetal thermometer, kub transmitter.
Q: Kuv muaj kev txiav txim me me, tuaj yeem' tsis ncav cuag MOQ, koj tuaj yeem ua li ntawd?
A: Tau kawg, peb tuaj yeem ua nws txawm tias 1 daim.
Q: Kuv puas tuaj yeem tau txais luv nqi?
A: Tus nqi yog sib tham, thiab peb tuaj yeem muab luv nqi rau koj raws li koj qhov kev txiav txim kom muaj nuj nqis. Yog tias koj tab tom yuav rau cov khoom ntim ntau, peb muab cov nqi lag luam wholesale rau koj.
Q: Koj yuav xa cov khoom li cas thiab yuav siv sijhawm ntev npaum li cas thiaj tuaj txog?
A: Airline thiab hiav txwv shipping yog xaiv tau. Shipping lub sij hawm nyob ntawm qhov deb thiab txoj kev thauj.
Q: Koj puas tuaj yeem luam kuv lub logo lossis lub tuam txhab npe ntawm cov khoom lossis ntim khoom?
A: Yog. Koj lub logo lossis lub npe tuam txhab tuaj yeem luam tawm ntawm cov khoom los ntawm stamping, luam ntawv, embossing, tuag-casting, txheej lossis cov ntawv nplaum.
